Product Description

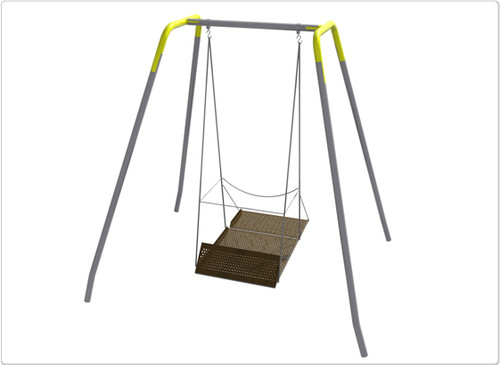

Portable ADA Platform Swing & Frame
A complete portable ADA Platform Swing and Frame system, consisting of 12 gauge punched steel 32" x 38" wheelchair platform and heavy duty 13 gauge 2 3/8" OD top rail and legs. Swing end and center fittings are a 7 gauge 2 7/8" OD flo-coated tubing coated with powder-coated paint. All steel is FloCoat Galvanized, triple coat corrosion protection. System is designed for single use with an 800 lb total capacity. Pull chain allows for self propulsion.
- Complete portable frame and platform swing designed for wheelchair and occupant.
- Pull chain allows for self propulsion.
- Wheelchair platform fabricated from 12 gauge steel.
- Total weight capacity is 800 pounds.
- Platform Dimensions: 32" W x 38" L x .75" H.
- Dimensions: 9' W x 8' D x 8' H.
- Use Zone: 21' W x 32' D.
This product is designed to be used under strict adult supervision and does not meet the standards set forth by ASTM.
Product Videos
Videos Hide Videos Show Videos
Custom Field
Group Swingsets
Style Accessible
Number of Seats One
Seat Type Platform
