Product Description

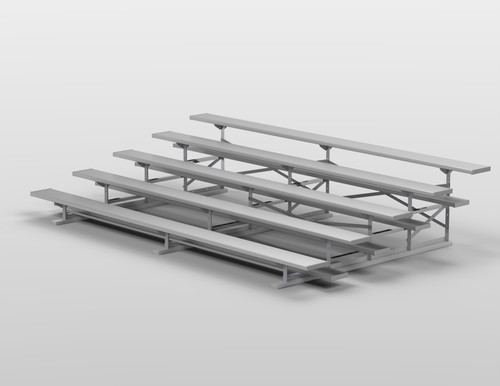

5 Row 42 Seat Aluminum Bleacher
This 5 row aluminum bleacher system seats 42 people. The seats are aluminum 2" x 12" plank aluminum. The rise on these bleachers are 6" and because the top seat is under 30" high a rear guard rail is not required.
A popular choice for school gyms, dance schools, pre-schools, pools and many other places where small numbers of parents and children gather. If you need to be able to move them out of the way easily and store them choose the Tip-N-Roll option. Our aluminum frame is our most popular and lightweight choice, if you prefer the ruggedness of a steel frame, choose our galvanized steel option. Just click on the options you want and place your order today!
When Ordering Bleachers we advise that you check your local requirements for such things as aisles, guardrails, ADA, or other requirements.
Building codes may vary by the year written and by the group who issues them (IBC, UBC, BOCA, SBC, NFPA, etc.).
Specifications
- Seating Capacity: Seats 42
- Bleacher Rows: 5 Row
- Bleacher Length: 15' Long
- Bleacher Frame: Aluminum, Galvanized Steel
- Bleacher Rise: 6 Inch Rise, 8 Inch Rise
- Transport Options: Jiffy Mover Complete System, Jiffy Sleeve System, No Jiffy Mover
- BL Series Angle Frame
- Aluminum frames are fabricated from 2 x 2 x 3/16 inch 6061-T6 alloy aluminum angles using a punched and bolted type construction for maximum strength and safety. All main frame components are pre-assembled with large 1/2 inch diameter bolts, lock washers and nuts. This bolted aluminum frame provides strong joints that will not develop weld cracks.
- Galvanized Steel frames are fabricated from 1 3/4" x 1 3/4" x 3/16" steel angles then hot dip galvanized after fabrication. The main frame components are welded at our factory and shipped with flat bar braces which are bolted in place on site by the customer.
- Plank Type: Aluminum
- Tip-N-Roll: No, Yes
- Railings: No
- Bleacher Accessories: Tip & Roll Mover System, Jiffy Mover System, Custom Colors, Bleacher Wraps
- Bleacher Features: Low Speed Towable, Quick Setup
- Height Last Row: 6" Low Rise – 36", 8" Std Rise – 48"
Note
6 inch Rise Bleacher frames have wide seat cleats which are designed for 2 x 12-inch seat planks. First-row seat 12 inch high. Check your local code requirements. Price and specifications subject to change without notice.
Note
Check your local code requirements Price and specifications subject to change without notice., Jiffy Sleeve System requires the purchase of at least (1) Jiffy Wheel/Tongue/Jack set (JIFFWTJACK), You must order one "Jiffy Mover System" for every bleacher you want to transport.
